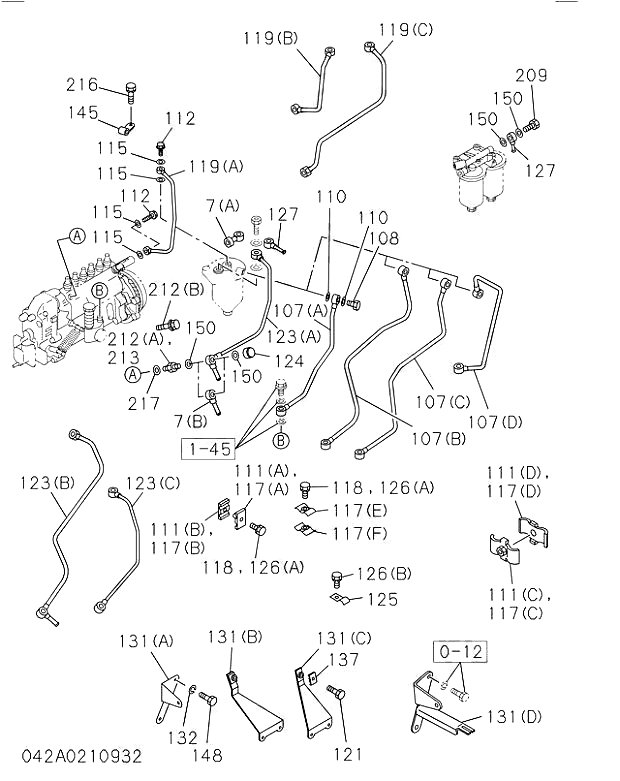

| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
| 46 | 9092023080 | 1 | PLUG | 200510- | |
| 107 | 1154168710 | 1 | PIPE; FUEL,FEED PUMP TO FUEL FILTER | 200510- | |
| 108 | 1096750900 | 1 | BOLT; JOINT,FUEL FILTER | 200510-200805 | |
| 108 | 8980378290 | 1 | BOLT; JOINT,FUEL FILTER | 200806- | |
| 110(A) | 1096301410 | 7 | GASKET; JOINT BOLT,FUEL PIPE | 200510- | |
| 110(B) | 1096301110 | 4 | GASKET; JOINT BOLT,FUEL PIPE | 200510- | |
| 112(A) | 1096752390 | 2 | BOLT; JOINT,FUEL FILTER | 200510- | |
| 112(B) | 1154197161 | 1 | BOLT; JOINT,FUEL FILTER | 200510- | |
| 115 | 9092023081 | 6 | GASKET; JOINT BOLT,FUEL PIPE | 200510- | |
| 119 | 1154168720 | 1 | PIPE; FUEL,FUEL FILTER TO INJ PUMP | 200510- | |
| 123(A) | 8980259980 | 1 | PIPE; FUEL,FUEL FILTER LEAK OFF | 200510- | |
| 123(B) | 1154168740 | 1 | PIPE; FUEL,FUEL FILTER LEAK OFF | 200510- | |
| 125(A) | 8943932803 | 4 | CLIP; FUEL PIPE | 200510- | |
| 125(B) | 1097011800 | 4 | CLIP; FUEL PIPE | 200510- | |
| 125(C) | 1097011723 | 1 | CLIP; FUEL PIPE | 200510- | |
| 125(D) | 1097011732 | 1 | CLIP; FUEL PIPE | 200510- | |
| 126 | 280806350 | 5 | BOLT; CLIP,FUEL PIPE | 200510-200512 | A |
| 126 | 280506350 | 5 | BOLT; CLIP,FUEL PIPE | 200601- | |
| 131(A) | 1137290962 | 1 | BRACKET; FUEL PIPE CLIP | 200510- | |
| 131(B) | 1137290971 | 1 | BRACKET; FUEL PIPE CLIP | 200510-200811 | |
| 131(C) | 8981346450 | 1 | BRACKET; FUEL PIPE CLIP | 200812- | |
| 148 | 281810200 | 2 | BOLT; BRKT | 200510-200512 | A |
| 148 | 281510200 | 2 | BOLT; BRKT | 200601- | |
| 150 | 1096300820 | 2 | GASKET; FUEL PIPE | 200510- | |
| 191(A) | 1096750371 | 1 | BOLT; EYE,FUEL PIPE | 200510- | |
| 191(B) | 1096750951 | 2 | BOLT; EYE,FUEL PIPE | 200510- | |
| 207 | 9092023082 | 4 | GASKET; EYE BOLT | 200510- | |
| 212 | 1132600740 | 2 | VALVE; OVERFLOW | 200510- | |
| 256 | 9092023083 | 2 | BOLT; EYE,FUEL PIPE | 200510-200805 | |
| 256 | 9092023084 | 2 | BOLT; EYE,FUEL PIPE | 200806- | |
| 312 | 9092023085 | 1 | GASKET; PLUG | 200510- | |
| 329(A) | 1154168700 | 1 | PIPE; FUEL, F/FILTER TO F/FILTER | 200510- | |
| 329(B) | 1154168750 | 2 | PIPE; FUEL, F/FILTER TO F/FILTER | 200510- | |
