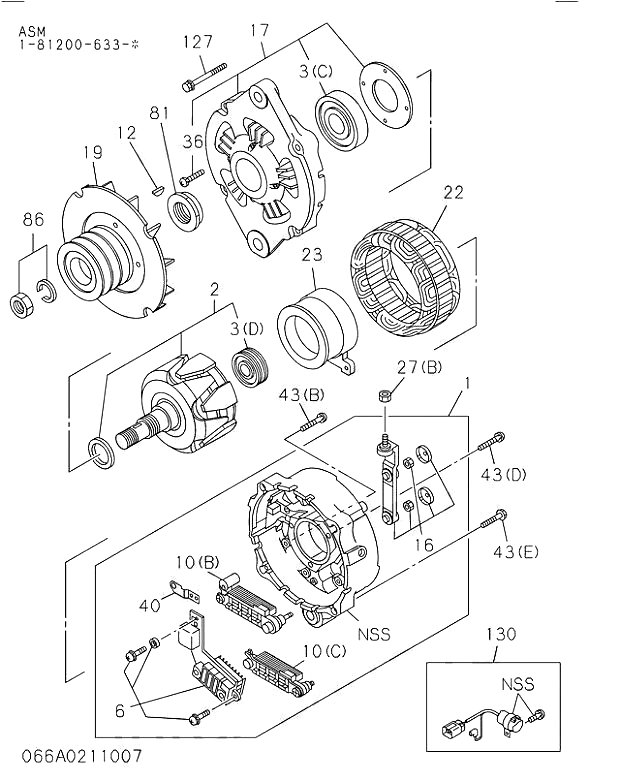

066 generator 200510-

CodeКаталожный номерQtyPart nameApplied S/N rangeICAВ корзину
118121436721COVER ASM; RR,GEN200510-
218122110201ROTOR; GEN200510-
003(A)18122976901BEARING; ROTOR,GEN200510-
003(B)18122977001BEARING; ROTOR,GEN200510-
418122983901TERMINAL; BRUSH,GEN200510-
618126001711REGULATOR ASM; VOLTAGE,GEN200510-
1018122983301RECTIFIER; GEN200510-
1618122977101TERMINAL ASM; RECTIFIER,GEN200510-
1718121310101COVER ASM; FRT,GEN200510-
1918122213011PULLEY; GEN200510-200603
1918122217901PULLEY; GEN200604-
2218121112901STATOR; GEN200510-
2318121201601COIL; ROTOR GEN200510-
2718122977201NUT; RECTIFIER,GEN200510-
3618122976801SCREW; FRT COVER200510-
043(A)18122983201SCREW; RR END COVER200510-
043(B)18122977301SCREW; RR END COVER200510-
043(C)18122977401SCREW; RR END COVER200510-
6918122983601CLIP; WIRE,GEN200510-
8689717813401NUT SET; PULLEY,GEN200510-
12718122976701BOLT SET; GEN200510-
